M12 female molded cable connector, 3P, 4P, 5P, 6P, 8P circular waterproof shielded connector

FOB Reference Price:Get Latest Price
$2.19 - $5.47 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Brand Name:
Teknel Connectors
Model Number:
M12 Waterproof Connector
Automotive/Industrial automation
Product name:
Electrical Connector
3-8 pin
IP rating:
Connected - IP68
External diameter:
max 5.4 mm
Working Temperature:
-25°C / +90° C
Insulation resistance:
≥ 10 Gohm
Contact resistance:
≤ 5mohm
Type of contact:
Turned contact in brass with gold plated
Housing material:
Packaging & Delivery
Packaging Details

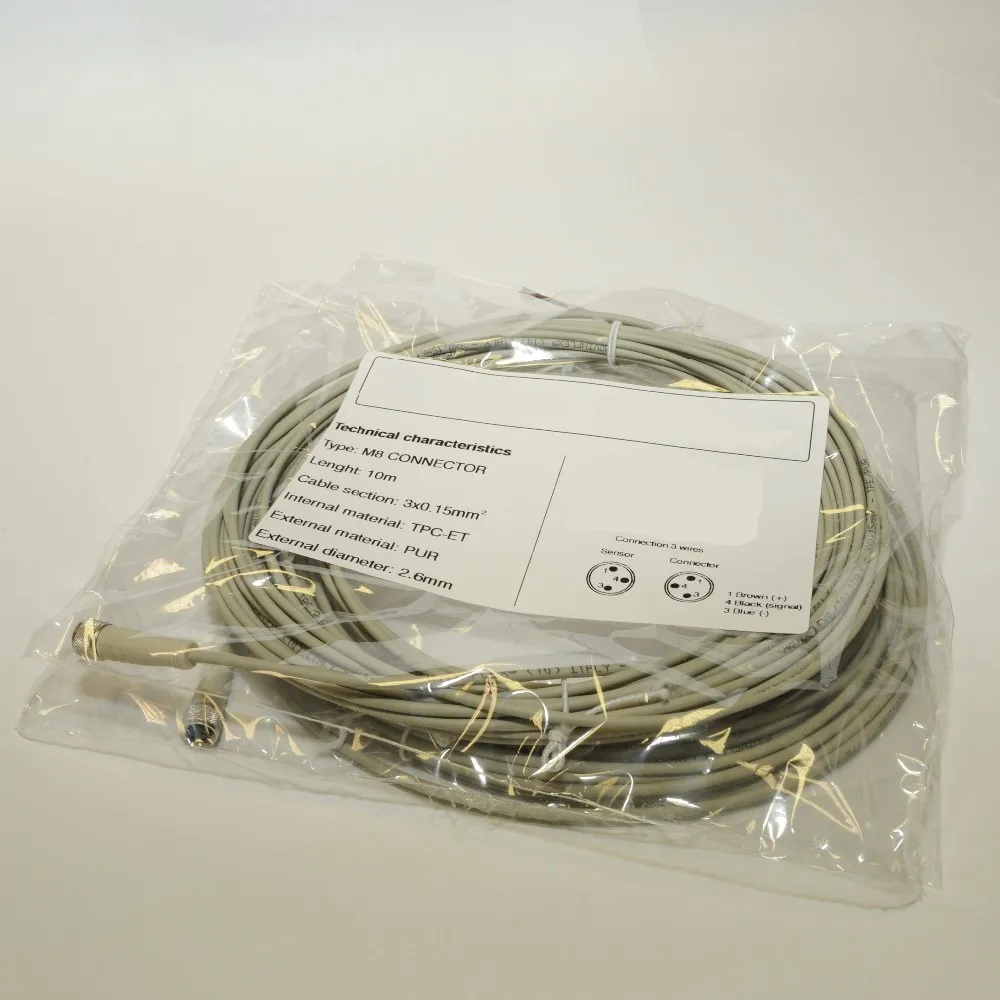

1. Our standard package:
Individual part with transparent PE bag with label;
Box size: 51x42x29 or 39x39x27
2. At buyer's request
Detailed Images
Product Description

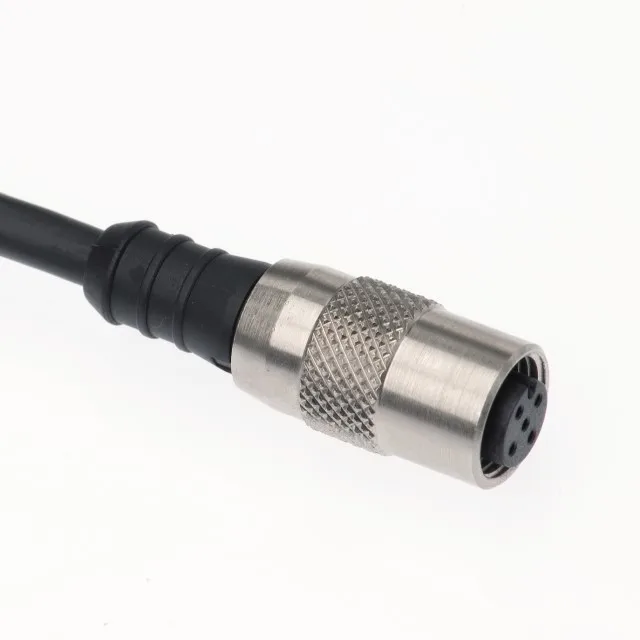

M12 female molded cable connector

M12 overmoulded circular connector, according to IEC61076-2-101 - Rohs compliant.
All body connector is overmoulded in Polyurethane (TPU), completed with turned nut, Brass nickel plated.
The standard contacts of M12 connector are turned, crimping like MIL specification and gold plated.

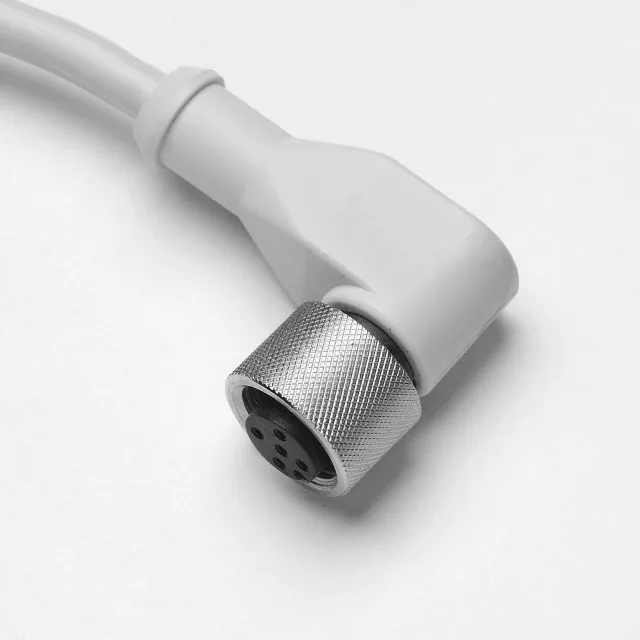

The M12 connectors overmoulded resist to high number of cycle bending and a large range of the temperature. Thank to these features is possible to use our connectors in different applications such as industrial automation, process control and commercial/industrial electronics. In the M12 series (PVC or PUR cable) there is female/male connector, straight or 90° angled configuration, eventually shielded and any type of request from customer. Straight or 90° angled configuration available in female connector. In standard configuration is provide with five meters of cable.

Packing & Delivery

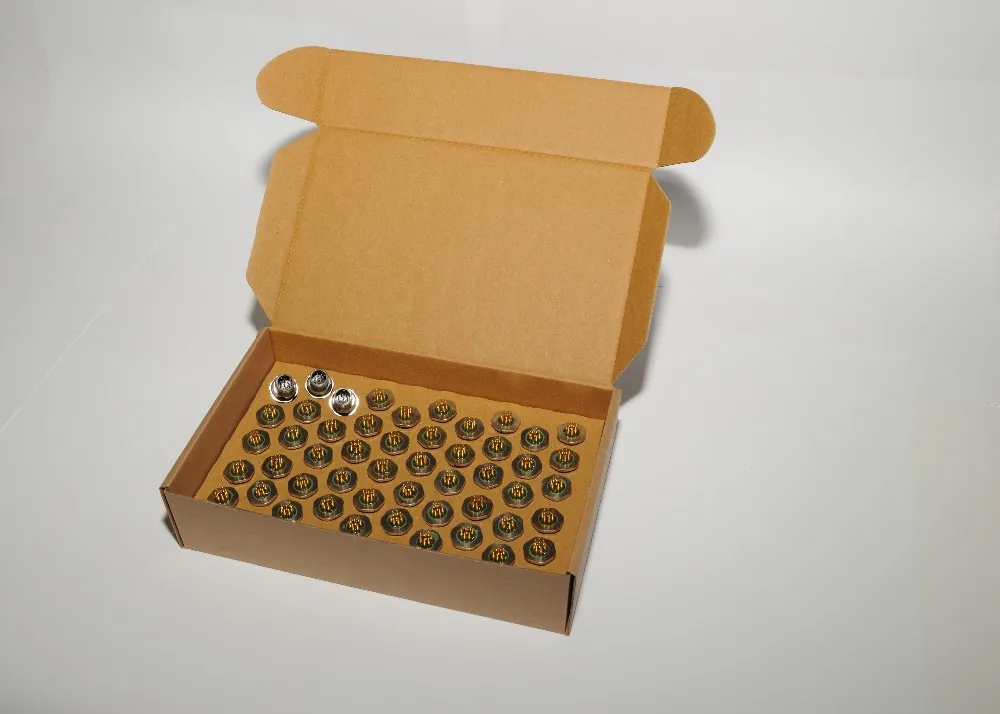

           1. Our standard package:
               Individual part with transparent PE bag with label;
               Box size: 51x42x29 or 39x39x27
            2. At buyer's request

Our Story

Company information

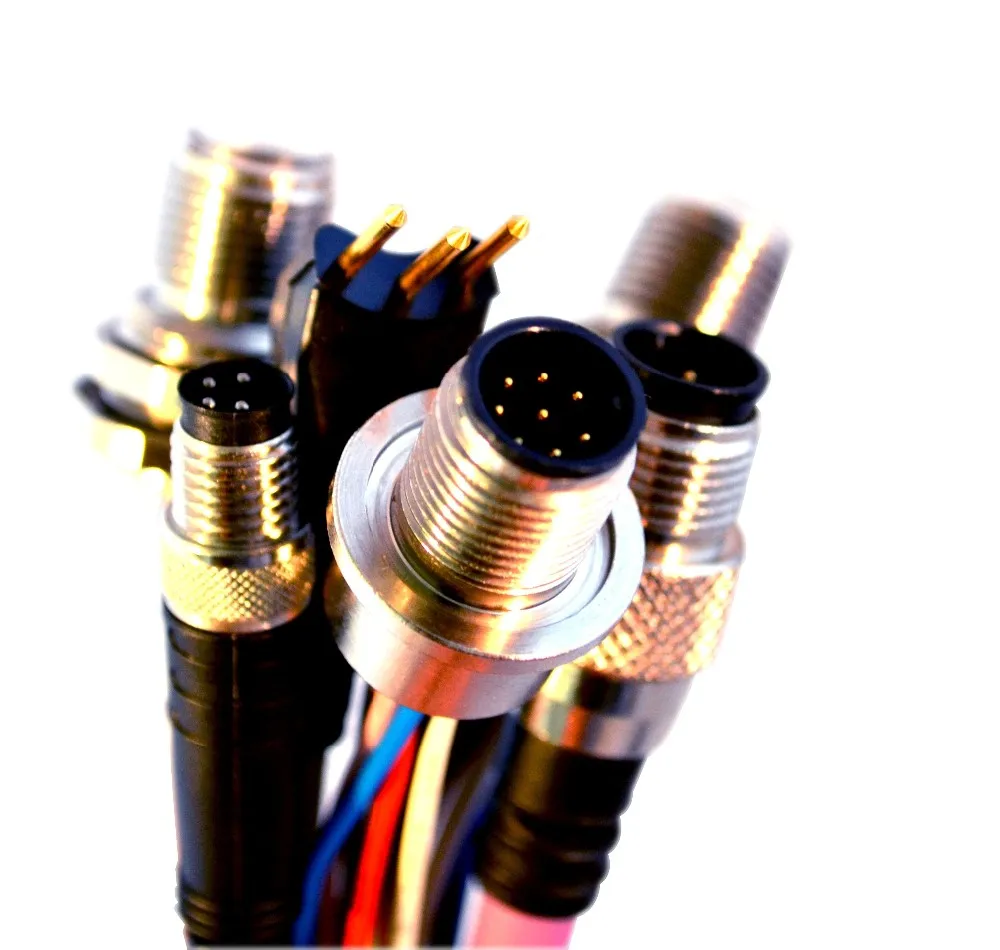

Through a long experience gained over the years Teknel produces any type of connection starting by M8-M12 circular connector for panel and overmolded, Automotive connectors, Devicent connectors, Ethernet Connectors, Profibus connectors, D-SUB connectors, SUB connectors and connectors for electric valve EN175301-803 (before DIN43650).

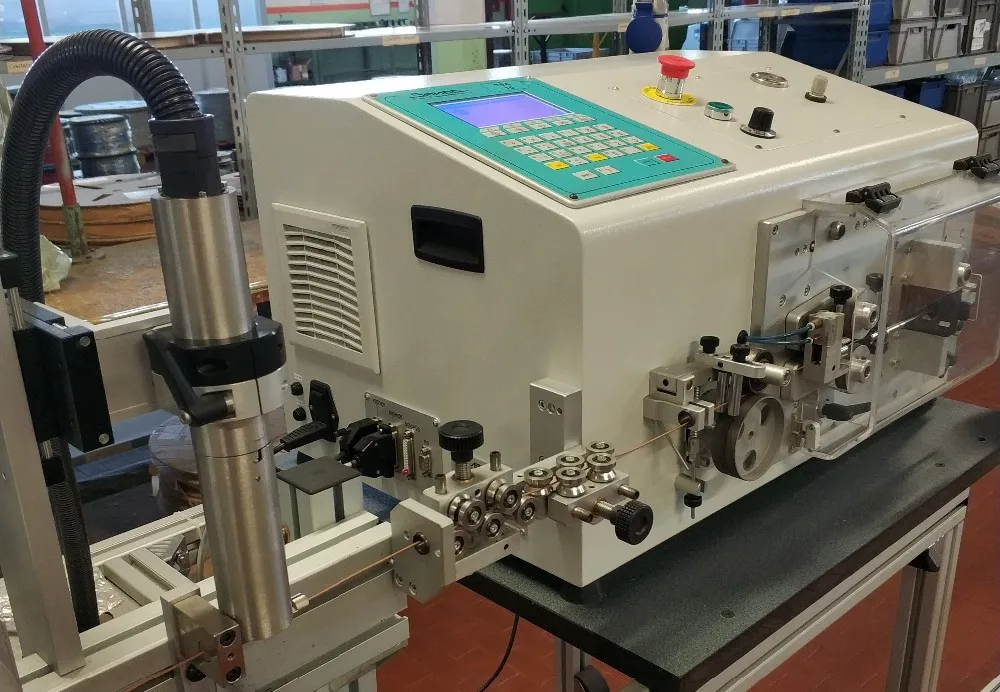

Thanks to the wide range of offered products, Teknel is present in many fields of the market such as sensors automation, pneumatics and automotive. All circular connectors overmolded are produced with Polyurethane material and the connection between contacts and conductors has produced by specific equipment (crimping tools) and technical data according to MIL rules.

Moreover, Teknel has specialized in the production of electrical wiring, starting by connection of circular connectors, arriving to complex electrical wiring in the industrial and in motor sport sectors.

Company advantages

Teknel has over 30 years of experience in the development and production of connectors and special cables for automotive and industrial automation. In these years Teknel has worked in synergy with its customer to produce the best product request.


1. When can I get the quote?
All of inquiries will be replied within 24/48 hours. If is it urgent, please write it on the email so we can process it with priority.

2. What information is needed for give a quote?
The series (M8/M12), male or female, pin number, straight or 90°, possibly the cable type and lenght and any other information you retain important.

3. What's your MOQ?
We don't like MOQ policy, we work well with small or large quantity, based from customer request. We can also provide samples for evaluate product in maximum 10 working days.

4. What about the quality?
All the raw materials we use are purchased form qualified suppliers that we constantly check. Our quality process consists to check all the production process starting with incoming material inspection up to outgoing goods quality check. Based on customer's request we can perform electrical tests on 100% of outgoing goods. Our quality process also guarantees the traceability of incoming materials.

5. Can you provide customized product for us?
Yes sure. Teknel's core business is to provide customized solutions for customer requests. We have a R&D team that, starting from the connector and trough the wiring, helps you find the best solution.

6. And about wiring cables?
Teknel Connectors was born to develop wiring cable to customer. The next natural step was to provide a complete wiring cable, so Teknel started developing new connectors based on customer demand. Now Teknel produce a complete wiring cable product so the customer can get it in work immediately without any other additional processing.
