ANTI SKID 2 pin custom circular connector female / male ABS system

FOB Reference Price:Get Latest Price
$2.74 - $10.93 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Italy
Brand Name:
Teknel Connectors
Model Number:
Anti-skid connector
Type:
2 pin circular connector
Application:
AUTOMOTIVE
Gender:
Male/Female
Pin:
2pin
IP rating:
connected - IP68
Working temperature:
-25°C / +90° C
Connector:
Molding Waterproof
Material:
TPU
Product name:
Electrical Connector
Wire Section:
17 to 20 AWG
Cable lenght:
0.5 to 10 mt or custom
Conductor material:
PVC HT 105°C APPOVAL FIAT 9.91107
External sheath material:
PVC HT 105°C APPOVAL FIAT 9.91107
Packaging & Delivery
Packaging Details
1. Our standard package:
Individual part with transparent PE bag with label;
Box size: 51x42x29 or 39x39x27
2. At buyer's request
Port
Genova
Detailed Images
Product Description

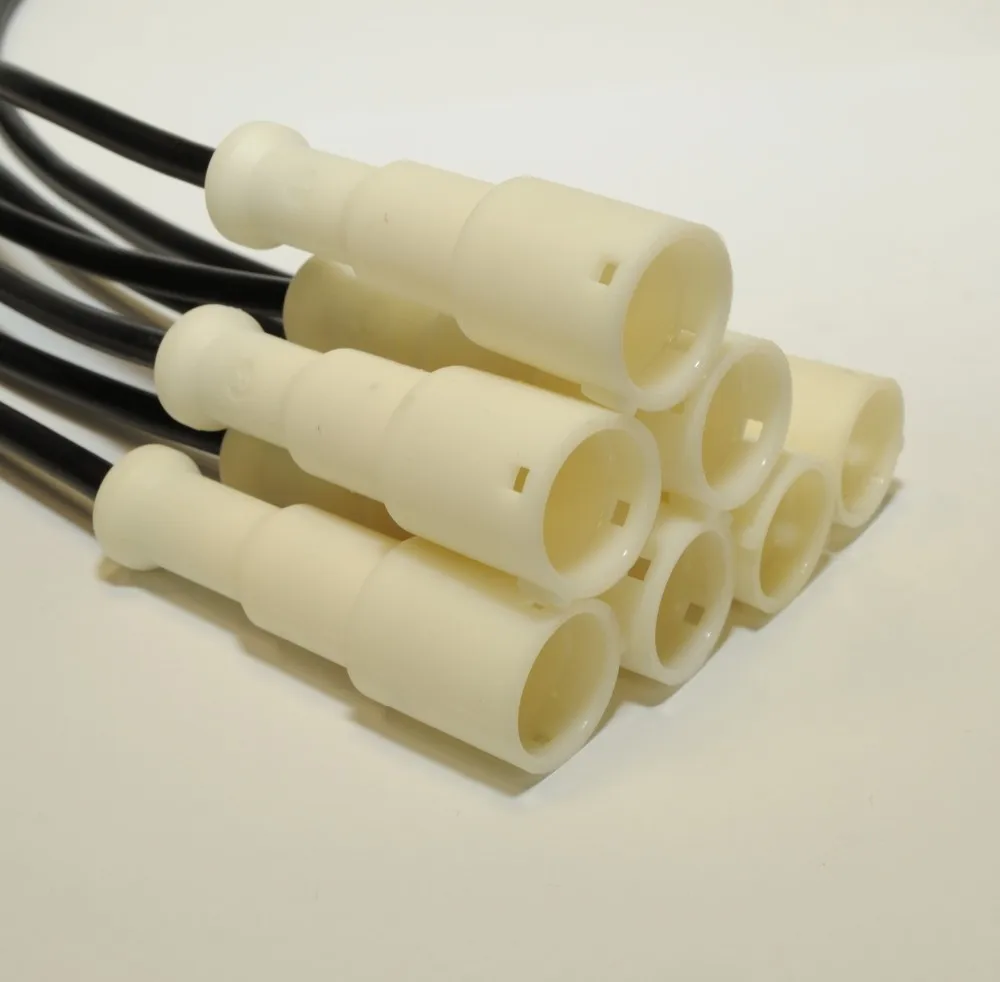

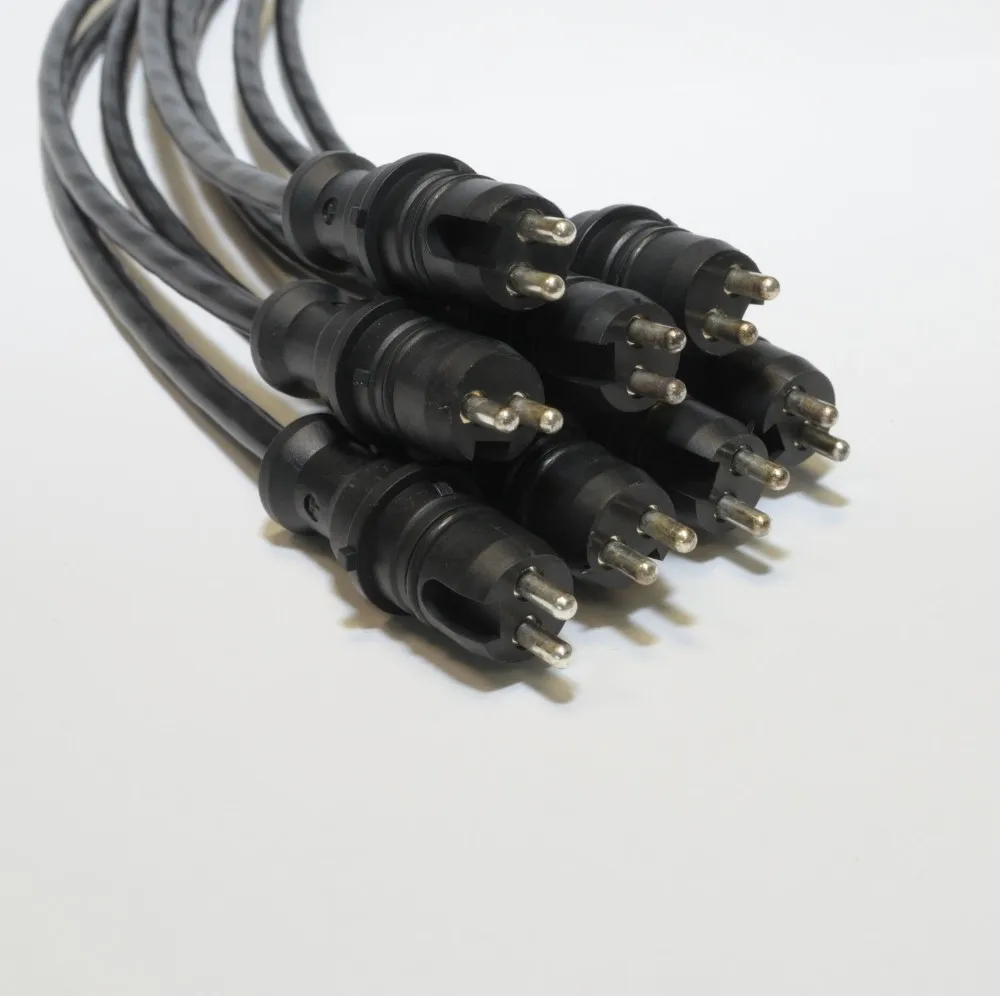

Anti-skid 2 pin circular connector

2 poles anti-skid female or male connector, overmoulded on PVC or PUR cable.
Devised and produced to connect brake sensor to control unit, it is also used in many other applications, due to its small dimension and its IP68 certification.
The connector body is made in Polyurethane and its contacts are turned and silver plated.
This kind of connector find its largest use in the "automotive" sector, where our long experience in this field brought us to become an important partner car industry.
The characteristics of cable is according to FIAT 9.91107 and the connector is according to BOSCH 3.334.420.082.
This connector is in compliance with European Instruction 2000/53/EC, and successive modification, concerning waste elimination. Each connector is producing by industrial process that is subjected to the following inspections: x-ray, water resistance and electric test.

Packing & Delivery

           1. Our standard package:
               Individual part with transparent PE bag with label;
               Box size: 51x42x29 or 39x39x27
            2. At buyer's request

Our Story

Company information

Through a long experience gained over the years Teknel produces any type of connection starting by M8-M12 circular connector for panel and overmolded, Automotive connectors, Devicent connectors, Ethernet Connectors, Profibus connectors, D-SUB connectors, SUB connectors and connectors for electric valve EN175301-803 (before DIN43650).


Thanks to the wide range of offered products, Teknel is present in many fields of the market such as sensors automation, pneumatics and automotive. All circular connectors overmolded are produced with Polyurethane material and the connection between contacts and conductors has produced by specific equipment (crimping tools) and technical data according to MIL rules.


Moreover, Teknel has specialized in the production of electrical wiring, starting by connection of circular connectors, arriving to complex electrical wiring in the industrial and in motor sport sectors.


Company advantages

Teknel has over 30 years of experience in the development and production of connectors and special cables for automotive and industrial automation. In these years Teknel has worked in synergy with its customer to produce the best product request.

FAQ

1. When can I get the quote?
All of inquiries will be replied within 24/48 hours. If is it urgent, please write it on the email so we can process it with priority.


2. What information is needed for give a quote?
The series (M8/M12), male or female, pin number, straight or 90°, possibly the cable type and lenght and any other information you retain important.

3. What's your MOQ?
We don't like MOQ policy, we work well with small or large quantity, based from customer request. We can also provide samples for evaluate product in maximum 10 working days.

4. What about the quality?
All the raw materials we use are purchased form qualified suppliers that we constantly check. Our quality process consists to check all the production process starting with incoming material inspection up to outgoing goods quality check. Based on customer's request we can perform electrical tests on 100% of outgoing goods. Our quality process also guarantees the traceability of incoming materials.

5. Can you provide customized product for us?
Yes sure. Teknel's core business is to provide customized solutions for customer requests. We have a R&D team that, starting from the connector and trough the wiring, helps you find the best solution.

6. And about wiring cables?
Teknel Connectors was born to develop wiring cable to customer. The next natural step was to provide a complete wiring cable, so Teknel started developing new connectors based on customer demand. Now Teknel produce a complete wiring cable product so the customer can get it in work immediately without any other additional processing.
